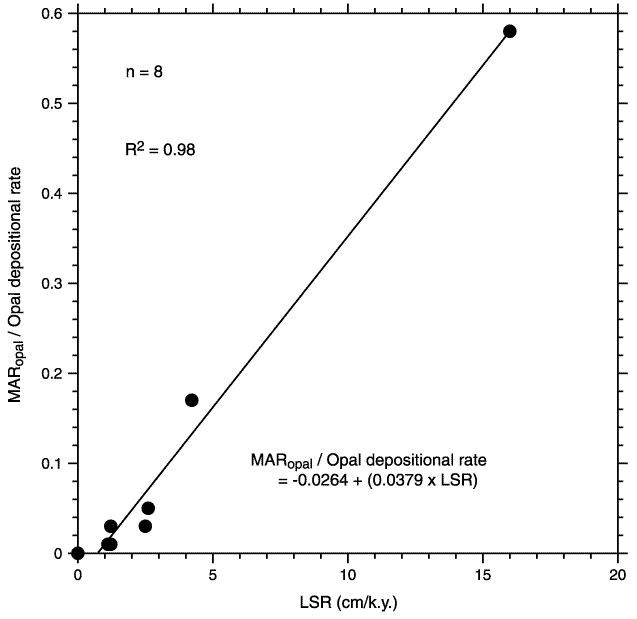

Figure F7. Correlation between the opal seabed preservation efficiency (the ratio of opal accumulation rate in the surface sediment, MAR_opal, to the original opal depositional rate on the seabed) and the linear sedimentation rate (LSR) for Antarctic continental margin deposits in the Ross Sea (taken from DeMaster et al., 1996).
