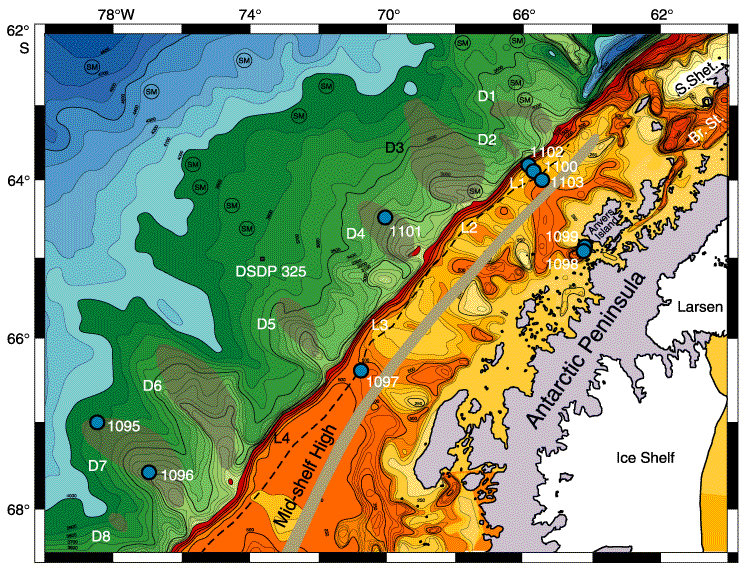

Figure F2. Sites drilled during ODP Leg 178 on the Antarctic Peninsula Pacific margin, with bathymetry from Rebesco et al. (1998) and showing sediment Lobes L1-L4 on the outer continental shelf, Drifts D1-D8 on the upper continental rise, the mid-shelf high (MSH), and DSDP Site 325. Br. St. = Bransfield Strait, S. Shet = South Shetland Islands. Sites 1095 and 1096 lie on Drift D7 and Site 1101 on Drift D4.
