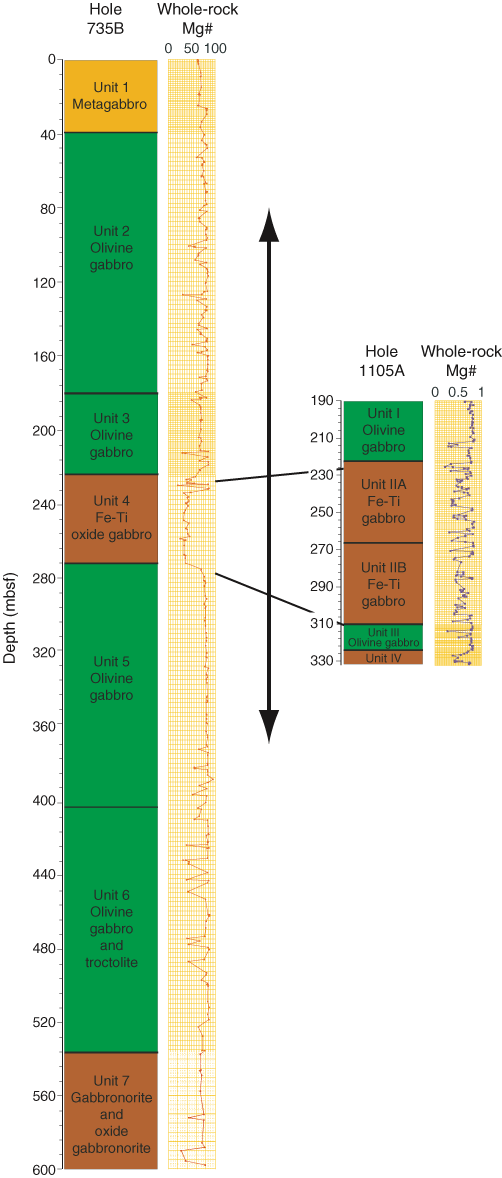

Figure F26. Downhole comparison of Mg# in Holes 735B and 1105A showing the region of the two cores that may correlate based on the high abundance of oxides in each zone (Unit IV of Hole 735B and Subunits IIA and IIB of Hole 1105A). Hole 1105A core has been depth-shifted, and both representations are at the same scale. Direct comparisons are made difficult by the finer scales of variation evident in Hole 1105A data because of the denser sampling. The magnitudes of the variations are, however, similar.
