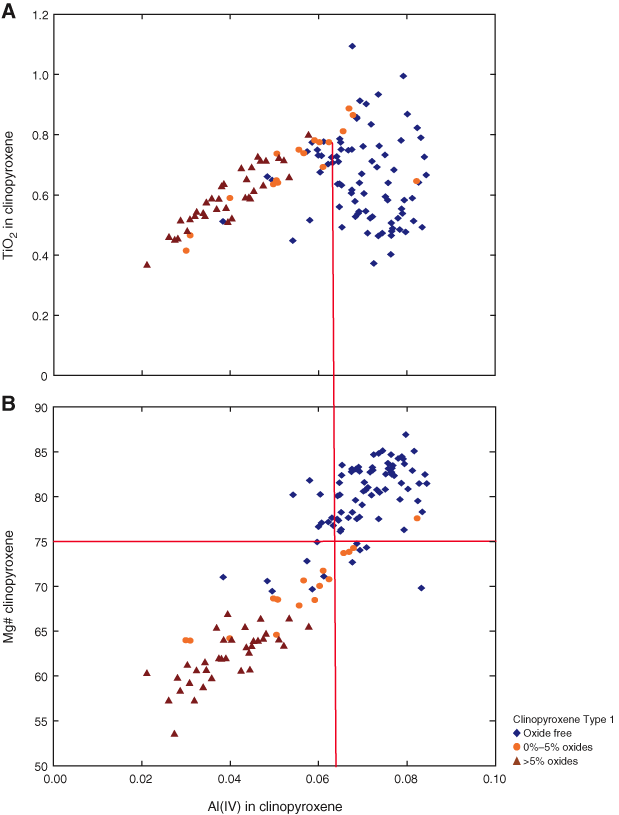

Figure F32. A. Plot showing relationship between tetravalent Al and TiO2 in clinopyroxene. B. Plot showing relationship between tetravalent Al and Mg# of clinopyroxene. Both the plots have been color-coded according to lithologic groupings used in previous plots. Red lines show the approximate location of oxide mineral introduction in the modes.

Figure F32. A. Plot showing relationship between tetravalent Al and TiO₂ in clinopyroxene. B. Plot showing relationship between tetravalent Al and Mg# of clinopyroxene. Both the plots have been color-coded according to lithologic groupings used in previous plots. Red lines show the approximate location of oxide mineral introduction in the modes.
