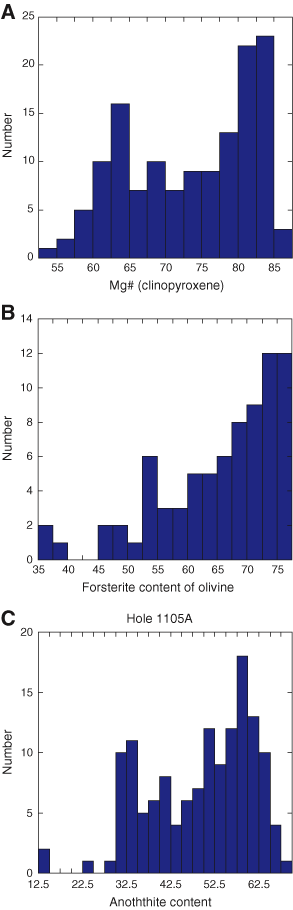

Figure F34.
Summary of all silicate mineral data. Histograms of Mg# of (
A
) clinopyroxene, (
B
) Fo content of olivine, and (
C
) An content of plagioclase. Distributions are somewhat bimodal, consistent with whole-rock data.
