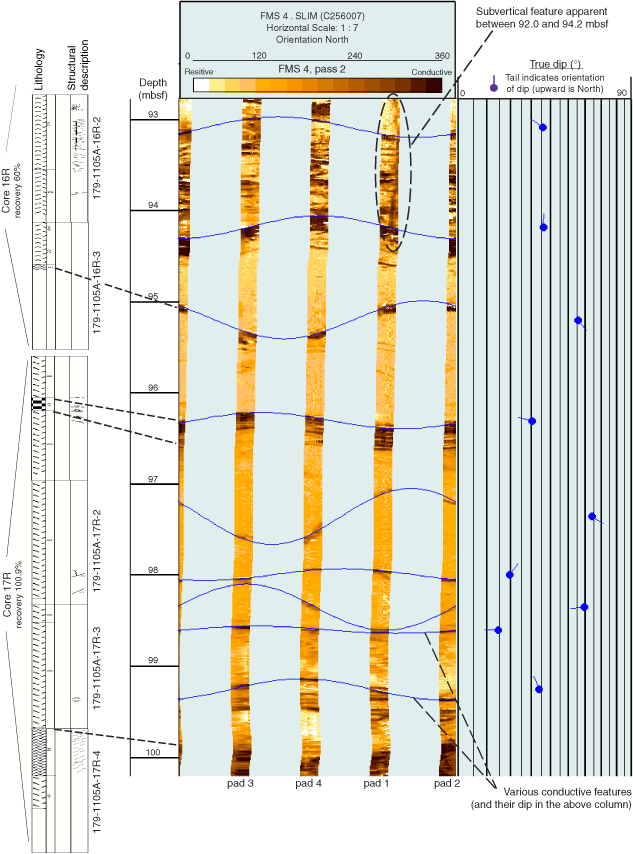

Figure F6. Example of Formation MicroScanner (FMS) image from Hole 1105A; core between 93 and 100 mbsf showing conductive and resistive features of the core and the ability to correlate features identified on the core barrel sheet (image from the Shipboard Scientific Party, 1999c). Also see Miller et al. (Chap. 2, this volume).
