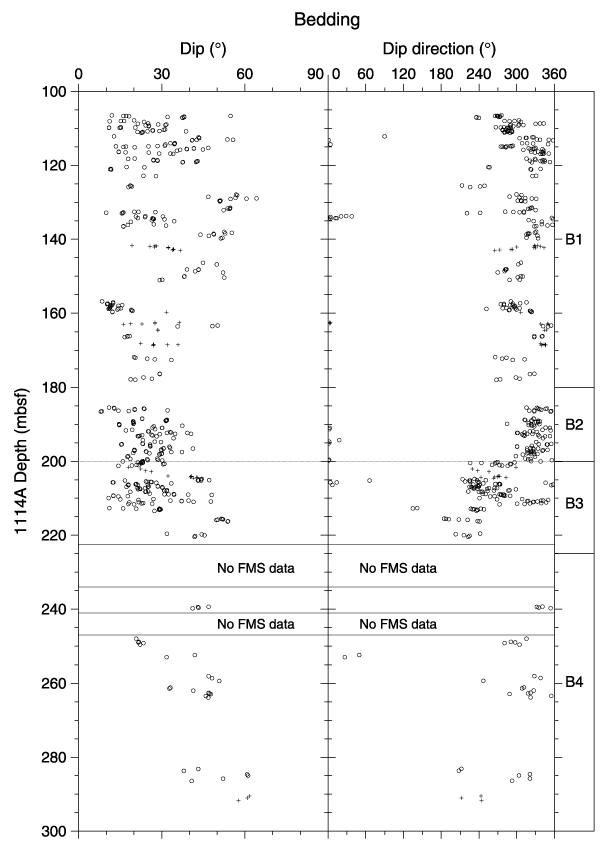

Figure F22. Bedding dip and dip direction vs. depth from FMS images analysis in Hole 1114A. Four intervals (B1-B4) are defined. The 200-m-deep line shows the sharp change of bedding dip direction between B2 and B3.
