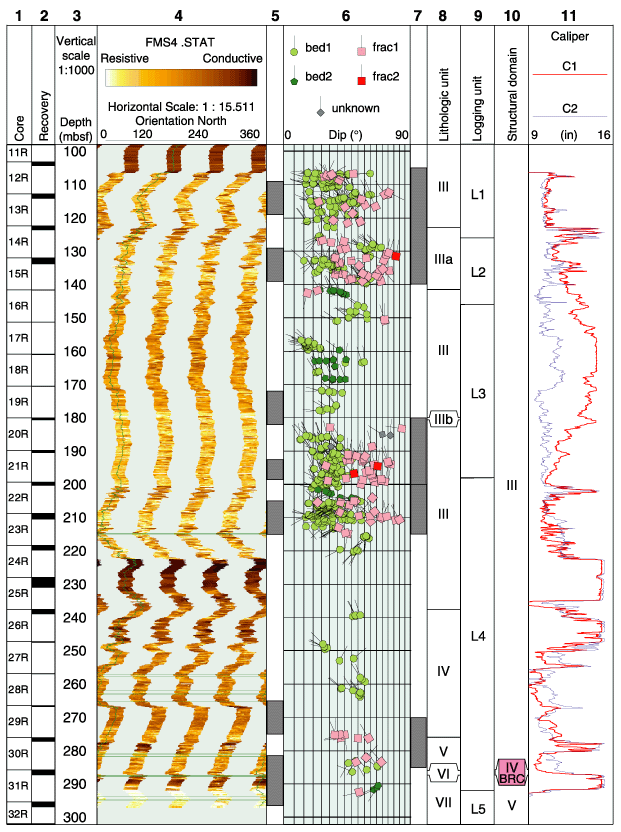

Figure F4. Composite log of Hole 1114A. Vertical scale = 1/1000. From left: (1) core, (2) core recovery, (3) depth, (4) static FMS image, (5) location of detailed FMS figures shown in this paper, (6) structural interpretation tadpoles, (7) depth intervals of fracture zone stereonets shown in this paper, (8) lithologic units, (9) logging units, (10) structural domains, and (11) caliper measurements. The thin vertical green line on the FMS images indicates the orientation of pad1, which corresponds to the C1 caliper reading. The tadpole position on the horizontal axis indicates the dip magnitude, and its tail points toward the dip direction. BRC = breccia.
