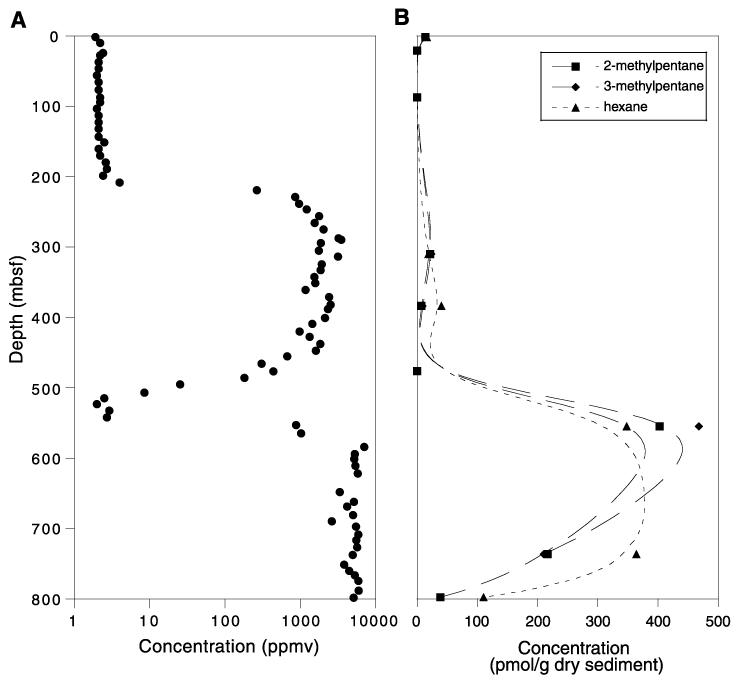

Figure F4. Depth distribution of hydrocarbons of sediments from Site 1115. A. Shipboard methane concentrations (from Taylor, Huchon, Klaus, et al., 1999). B. Selected hydrocarbon gas concentrations detected by shore-based purge-trap analysis.
