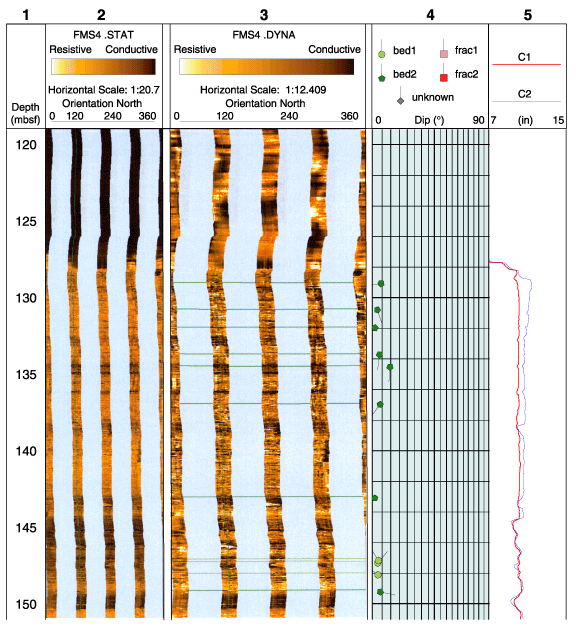

Figure AF1. FMS image and analysis, Hole 1118A. From left: (1) depth, (2) static FMS image, (3) dynamic FMS image with a 2-m color equalization sliding window with sinusoids corresponding to the structural measurements, (4) structural interpretation tadpoles, and (5) caliper measurements. The thin vertical green line on the FMS images indicates the orientation of pad 1, which corresponds to the C1 caliper reading. The tadpole position on the horizontal axis indicates the dip magnitude, and its tail points toward the dip direction. The global image is cut in consecutive page size pieces. (Continued on next 15 pages.)

Figure AF1. FMS image and analysis, Hole 1118A. From left: (1) depth, (2) static FMS image, (3) dynamic FMS image with a 2-m color equalization sliding window with sinusoids corresponding to the structural measurements, (4) structural interpretation tadpoles, and (5) caliper measurements. The thin vertical green line on the FMS images indicates the orientation of pad 1, which corresponds to the C1 caliper reading. The tadpole position on the horizontal axis indicates the dip magnitude, and its tail points toward the dip direction. The global image is cut in consecutive page size pieces. (Continued on next 15 pages).
