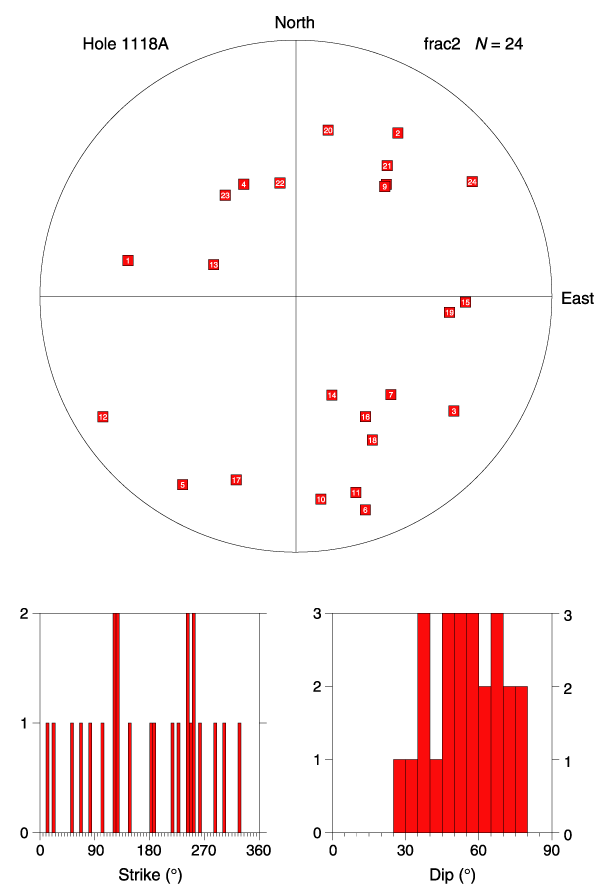

Figure F5. Hole 1118A global fracture orientations. Equal area stereographic projection, lower hemisphere. Poles to frac 1 (none here) and frac 2 are shown as pink and red squares, respectively. Strike and dip histograms use 5° bins. Strike is normalized so that the dip direction is 90° clockwise from strike. Frac 1 and frac 2 histograms are stacked with same color code as stereonet poles.
