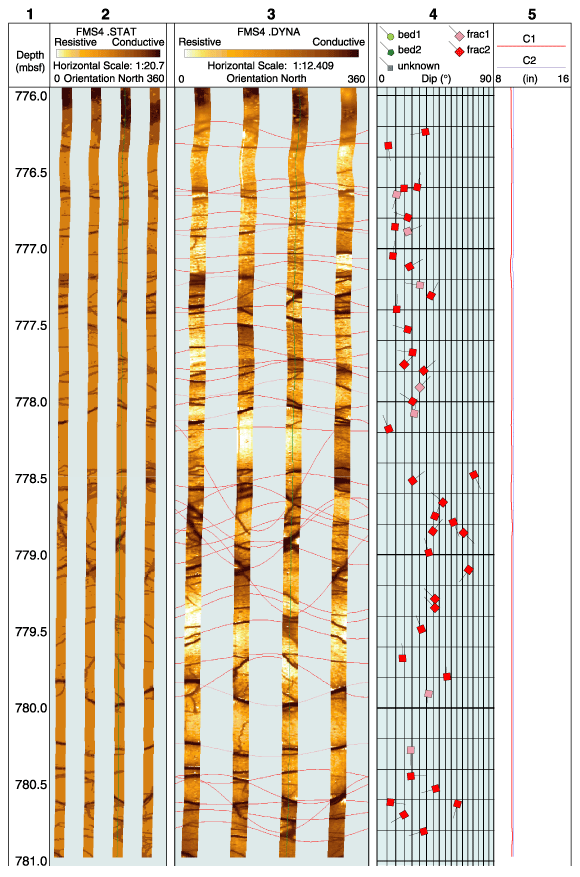

Figure F53. FMS image and analysis, Hole 1109D, 776-781 mbsf. The color range of the static image has been shifted towards darker values so as to better reveal the fracturation. From left: (1) depth, (2) static FMS image, (3) dynamic FMS image with a 2-m color equalization sliding window; sinusoids correspond to the structural measurements, (4) structural measurement tadpoles, and (5) caliper measurements. The thin vertical green line on the FMS images indicates the orientation of pad 1, which corresponds to the C1 caliper reading. The tadpole position on the horizontal axis indicates the dip magnitude, and its tail points toward the dip direction.
