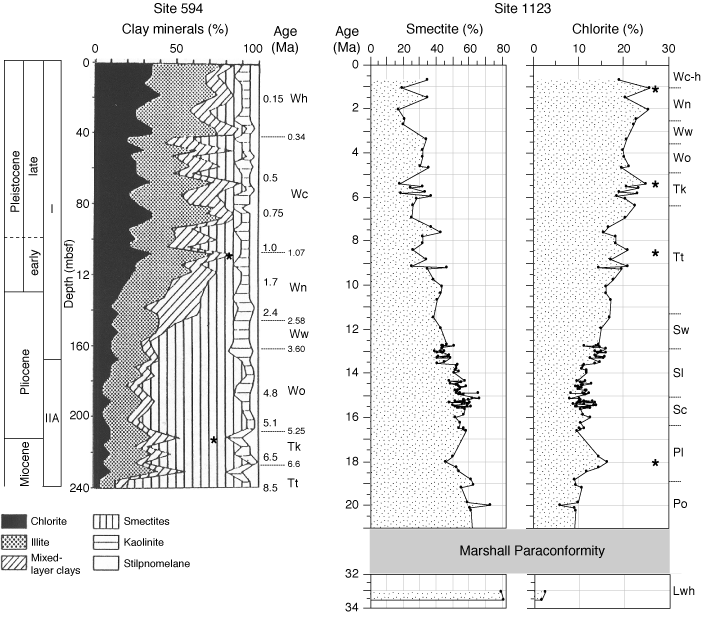

Figure F18. Quantitative comparison of clay mineral assemblages from DSDP Leg 90 Site 594 (water depth = 1204 m; northwest flank of Bounty Trough) and ODP Site 1123 (water depth = 3290; North Chatham Drift) (after Dersch and Stein, 1991; Winkler and Dullo, this volume). A compositional shift toward chlorite + illite-rich and smectite-poor clay assemblages starts under the DWBC at ~21 Ma (early Miocene) at Site 1123. Clover-leaf asterisks identify culminations in chlorite content that occur at ~18, 8.5, 5.3, and 1.2 Ma and are inferred to represent irregular pulses of uplift along the South Island alpine chain.
