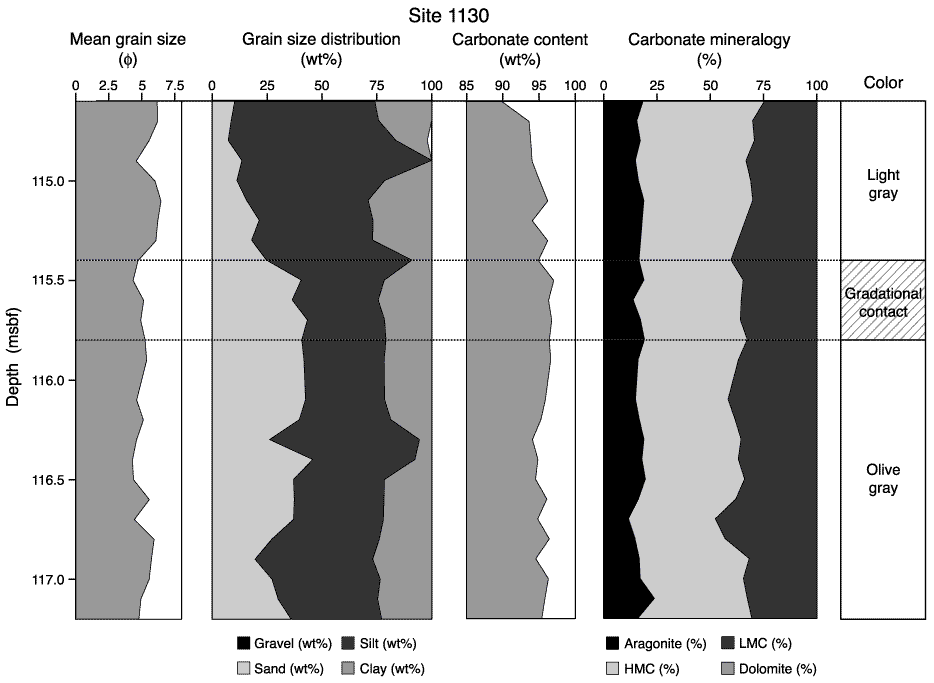

Figure F5. Sediment texture, carbonate content, and carbonate mineralogy vs. depth for interval 114.60-117.20 mbsf at Site 1130. LMC = low-Mg calcite, HMC = high-Mg calcite.
