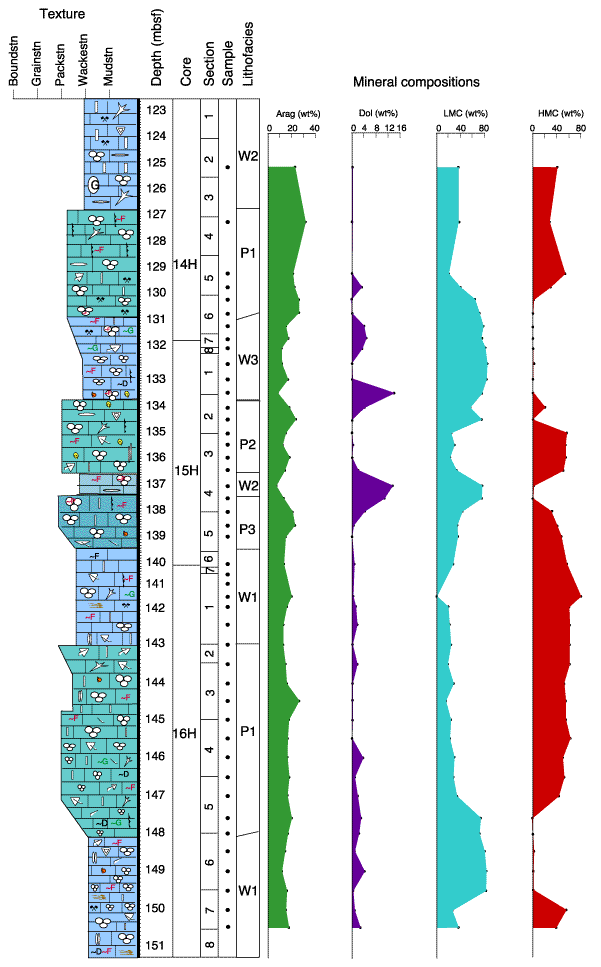

Figure F7. Mineralogy of the carbonate fraction. Notice the alternation between low-Mg calcite (LMC) and high-Mg calcite (HMC). Boundston = boundstone, Grainstn = grainstone, Packstn = packstone, Wackstn = wackestone, Mudstn = mudstone, Arag = aragonite, Dol = dolomite.
