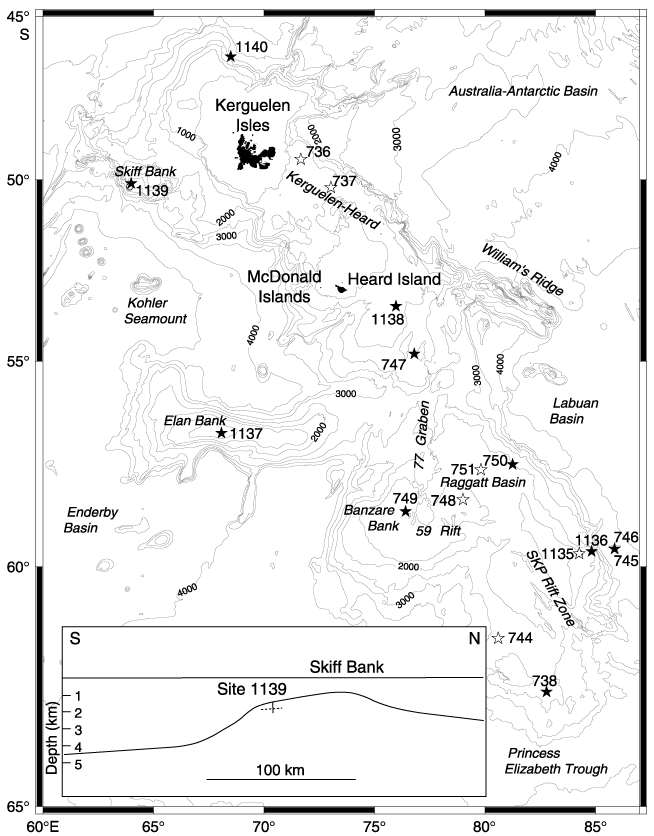

Figure F1. Bathymetry of the Kerguelen Plateau. Contour interval = 500 m. Inset is a schematic north-south cross section through Site 1139. The dashed line indicates contact between sediments and volcanic basement.
