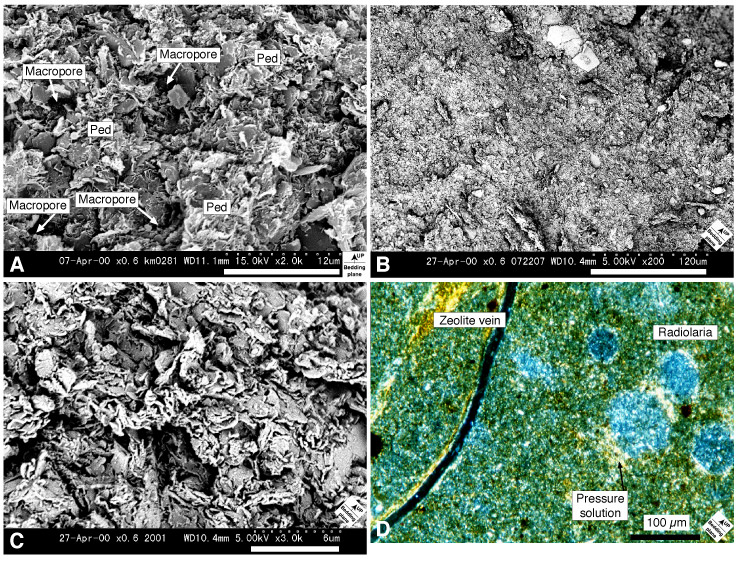

Figure F10. Microfabrics of Subunit IIB. A. General view showing random fabric of clay platelets in FF contact from core at 150.47 mbsf (Sample 185-1149A-17H-3, 77-79 cm); vertical view, secondary electron image. B. Fabric showing strongly preferred orientation of coarse-grained particles from core at 170.68 mbsf (Sample 185-1149A-20X-1, 88-90 cm); vertical view, secondary electron image. C. Close-up image of center of B; vertical view, secondary electron image. D. Fabric showing strongly preferred orientation of coarse-grained particles from core at 164.8 mbsf (Sample 185-1149A-19X-1, 40-42 cm). Note pressure solution around molding of radiolarian tests; vertical view, crossed nicols.
