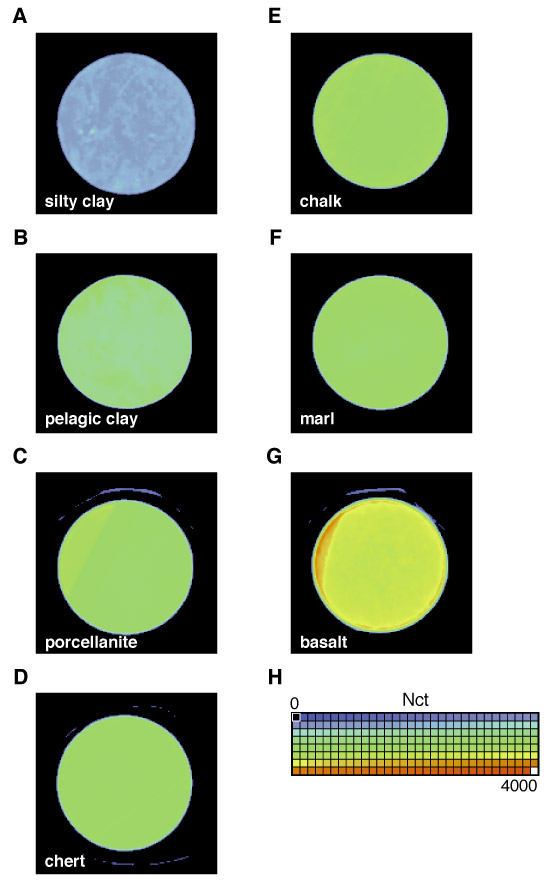

Figure F5. X-ray CT images of whole-round core samples from Site 1149. A. Sample 185-1149A-3H-4, 130-140 cm. B. Sample 185-1149A-17H-2, 140-150 cm. C. Sample 185-1149C-6R-1, 47-53 cm. D. Sample 185-1149B-18R-1, 121-126 cm. E. Sample 185-1149B-27R-1, 0-12 cm. F. Sample 185-1149C-8R-1, 47-51 cm. G. Sample 185-1149D-8R-1, 83-90 cm. H. Color scale for the Nct. Each color grade has a range of 15.625 Nct. Blue = low attenuation, red = high attenuation. Lithologies are as given during Leg 185 (Shipboard Scientific Party, 2000a). Nct = CT number.
