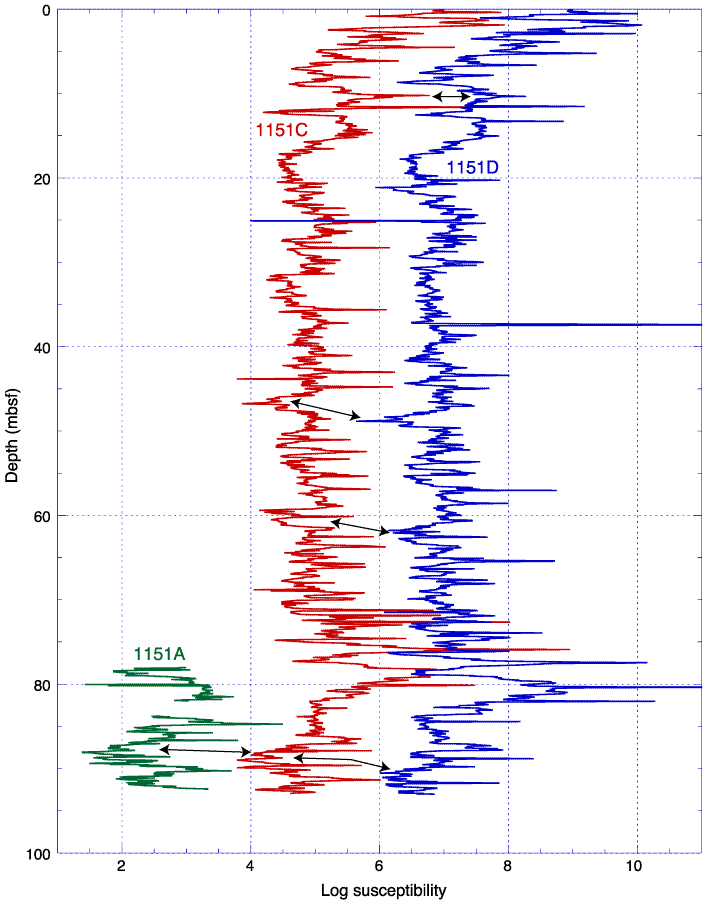

Figure F2. The natural log of the magnetic susceptibility (raw meter units) for Holes 1151A (bold green), 1151C (red), and 1151D (blue) in the mbsf depth scale. Integer values of +2 and +4 were added to each data point for Holes 1151C and 1151D, respectively, to separate data for purposes of display. The mbsf depth offset is obvious between several distinctive correlative data patterns (arrows).
