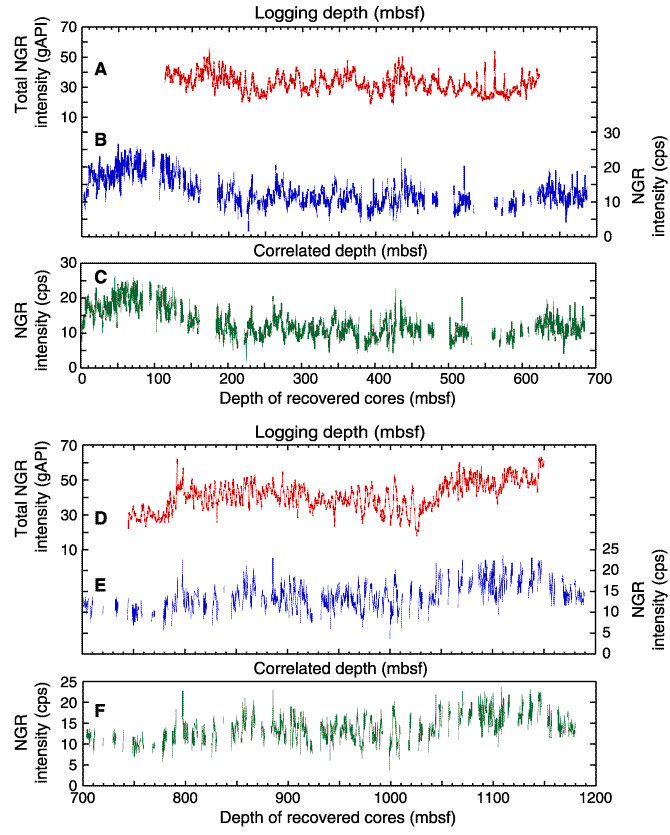

Figure F11. Depth shift and depth adjustment of natural gamma ray (NGR) variations between whole-core MST measurements on sediments from Hole 1150B and wireline logging in Hole 1150D. NGR is plotted with (A, D) logging depth (mbsf) in Hole 1150D, (B, E) tuned depth (meter correlated depth [mcd]) in cores recovered from Hole 1150B to Hole 1150D logging depth, and (C, F) shipboard depth (mbsf) for cores recovered from Hole 1150B.

Figure F11. Depth shift and depth adjustment of natural gamma ray (NGR) variations between whole-core MST measurements on sediments from Hole 1150B and wireline logging in Hole 1150D. NGR is plotted with (A, D) logging depth (mbsf) in Hole 1150D, (B, E) tuned depth (meter correlated depth [mcd]) in cores recovered from Hole 1150B to Hole 1150D logging depth, and (C, F) shipboard depth (mbsf) for cores recovered from Hole 1150B.
