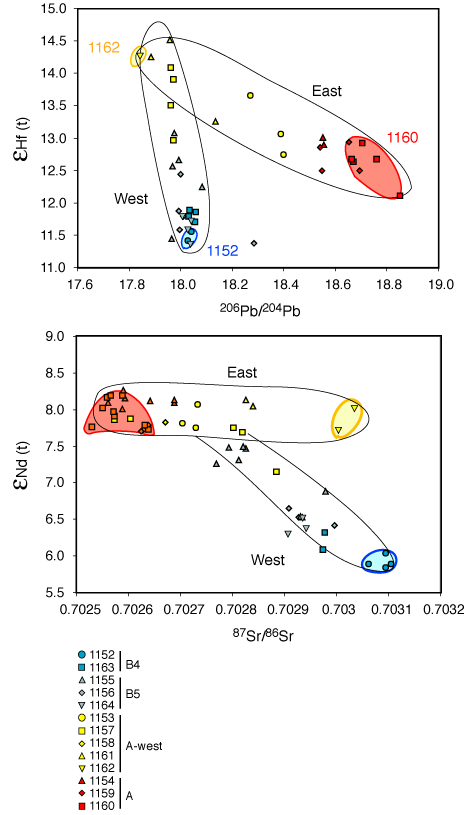

Figure F9. Nd vs. 206Pb/204Pb and 87Sr/86Sr data for Leg 187 basaltic glasses from Pedersen et al. (this volume). Fields outline inferred east and west mixing trends between three components that are most strongly represented at the three outlined sites (1152, 1160, and 1162).

Figure F9.

Nd vs. ²⁰⁶Pb/²⁰⁴Pb and ⁸⁷Sr/⁸⁶Sr data for Leg 187 basaltic glasses from Pedersen et al. (this volume). Fields outline inferred east and west mixing trends between three components that are most strongly represented at the three outlined sites (1152, 1160, and 1162).
