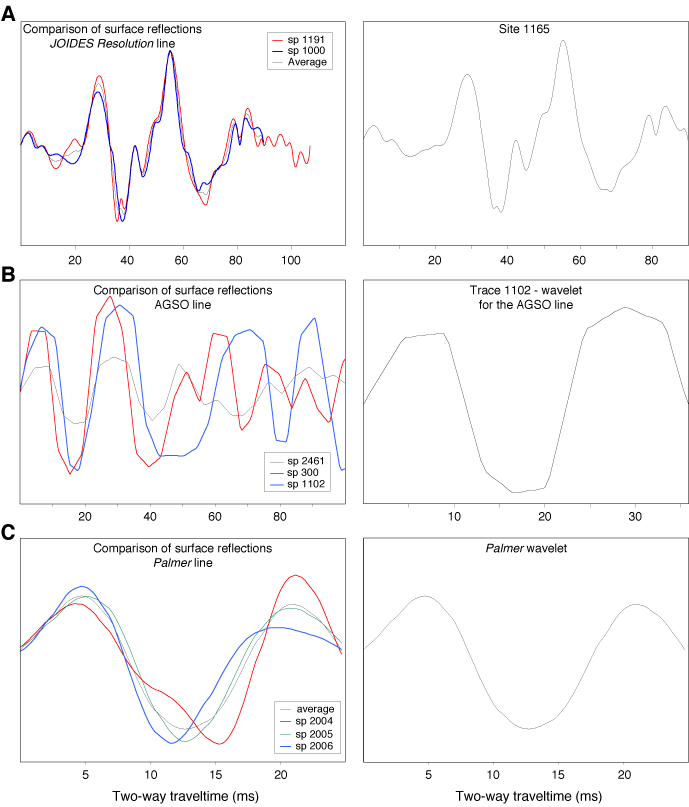

Figure F4. Wavelets used for creating the synthetic seismograms for each seismic profile. A. Site 1165 wavelet is based on the average of two widely spaced traces. B. AGSO line wavelet is based on the seafloor reflection from trace 1102. C. Palmer line wavelet is based on the average of three adjacent traces ~9.5 km southwest of Site 1166. sp = shotpoint.

Figure F4. Wavelets used for creating the synthetic seismograms for each seismic profile. A. Site 1165 wavelet is based on the average of two widely spaced traces. B. AGSO line wavelet is based on the seafloor reflection from trace 1102. C. Palmer line wavelet is based on the average of three adjacent traces ~9.5 km southwest of Site 1166. sp = shotpoint.
