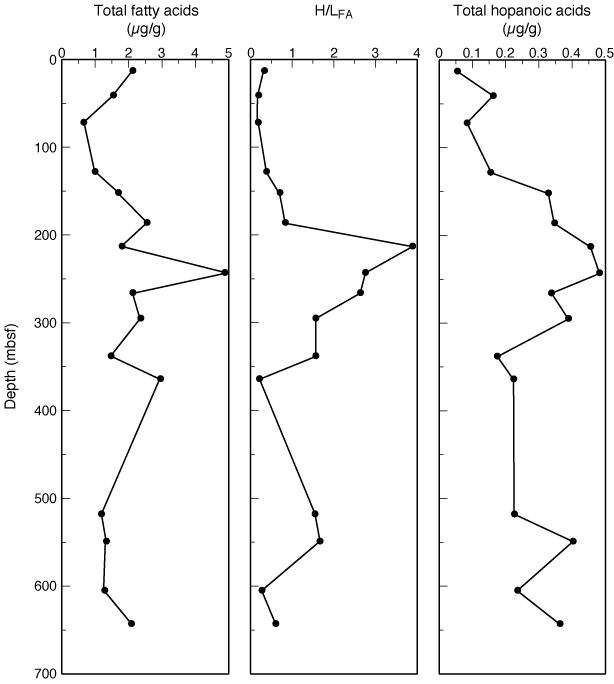

Figure F2. Total fatty acid concentrations, terrigenous to aquatic fatty acids ratio (H/LFA), and total hopanoic acid concentrations vs. depth for Site 1178.

Figure F2. Total fatty acid concentrations, terrigenous to aquatic fatty acids ratio (H/L_FA), and total hopanoic acid concentrations vs. depth for Site 1178.
