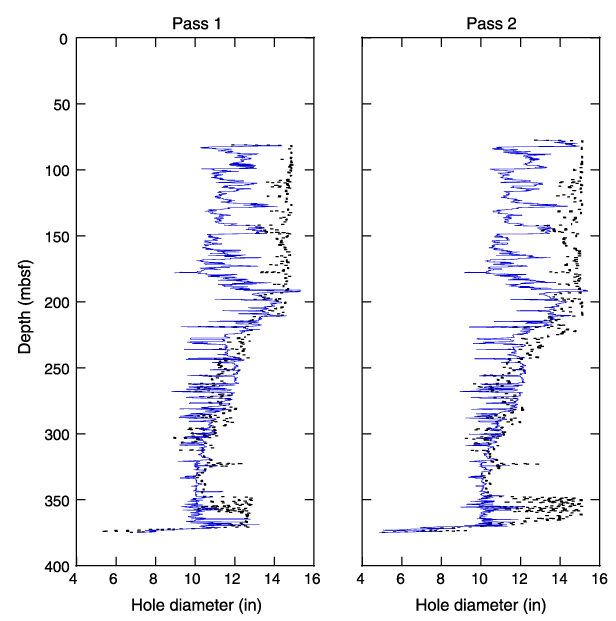

Figure F2. Caliper logs from two passes with the DSI tool in Hole 1173A. Two curves represent orthogonal diameters of the borehole as a function of depth. The hole was drilled with a 9.875-inch bit. The borehole is enlarged above 226 mbsf, but its shape does not change significantly between pass 1 and pass 2.
