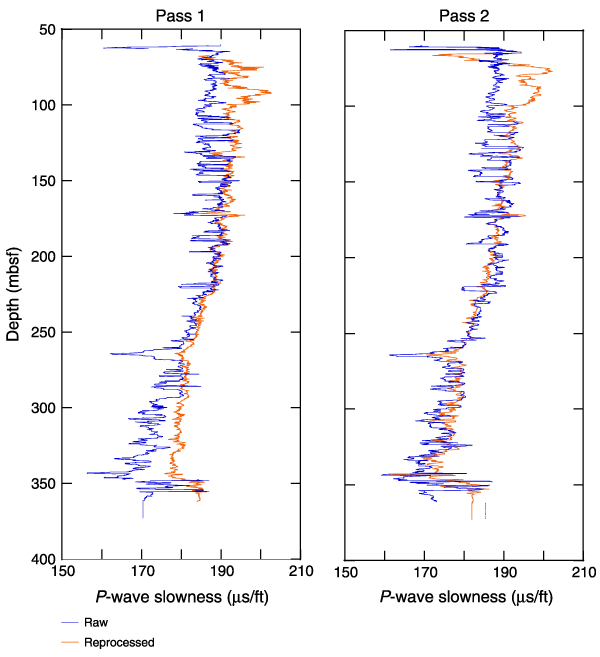

Figure F5. Comparison of shipboard and reprocessed P-wave slowness logs as function of depth from pass 1 and pass 2 in Hole 1173A. Reprocessed curves show less variation above 226 mbsf (enlarged hole) where mode switching significantly affected the shipboard logs. The velocity inversion below 350 mbsf is present in both shipboard and reprocessed logs.

Figure F5. Comparison of shipboard and reprocessed P-wave slowness logs as function of depth from pass 1 and pass 2 in Hole 1173A. Reprocessed curves show less variation above 226 mbsf (enlarged hole) where mode switching significantly affected the shipboard logs. The velocity inversion below 350 mbsf is present in both shipboard and reprocessed logs.
