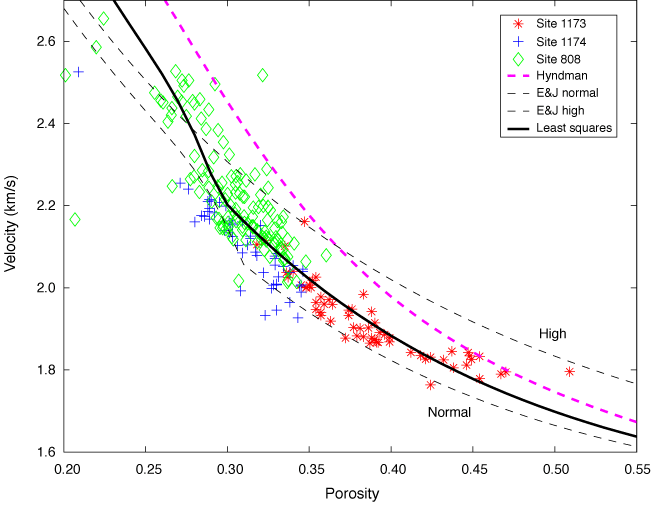

Figure F11. Empirical velocity-porosity formulations for the underthrust sediments for Sites 1173, 1174, and 808. The least-squares fit (solid black line) is plotted for a shale fraction of 1. The formulations for normal and high consolidation (Erickson and Jarrard [E&J], 1998) are plotted for shale fractions of 1 as well as the formulation from Hyndman et al. (1993).

Figure F11. Empirical velocity-porosity formulations for the underthrust sediments for Sites 1173, 1174, and 808. The least-squares fit (solid black line) is plotted for a shale fraction of 1. The formulations for normal and high consolidation (Erickson and Jarrard [E&J], 1998) are plotted for shale fractions of 1 as well as the formulation from Hyndman et al. (1993).
