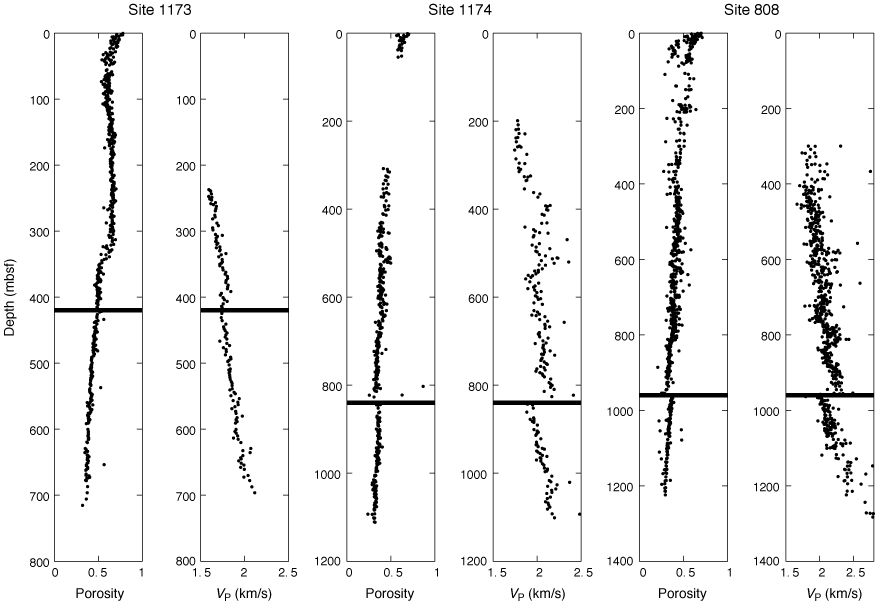

Figure F4. Core-based laboratory measurements of compressional velocity and porosity for Sites 1173, 1174, and 808. The proto-décollement for Site 1173 and the décollement for Sites 1174 and 808 are indicated by the black line. Velocity measurements are in the z-direction only. In situ corrections have not yet been applied to these data.

Figure F4. Core-based laboratory measurements of compressional velocity and porosity for Sites 1173, 1174, and 808. The proto-décollement for Site 1173 and the décollement for Sites 1174 and 808 are indicated by the black line. Velocity measurements are in the z-direction only. In situ corrections have not yet been applied to these data.
