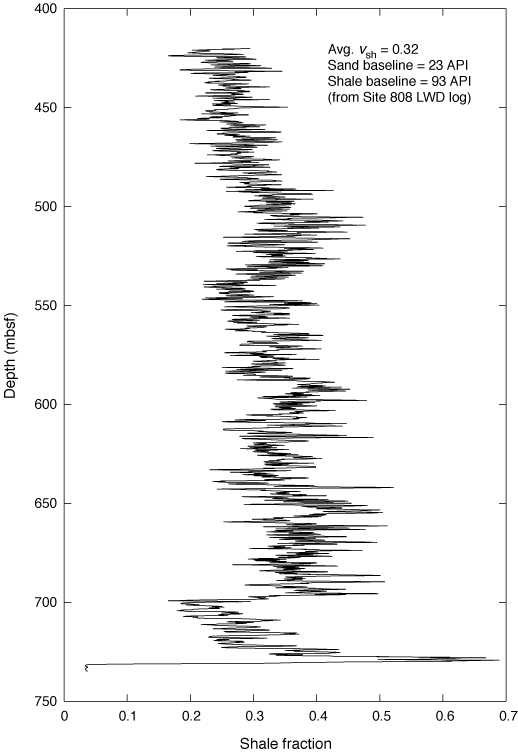

Figure F9. Calculated shale fraction log for Site 1173. The average shale fraction calculated is 0.32. The sand and shale baselines were taken from the logging-while-drilling (LWD) gamma ray log from Site 808.
