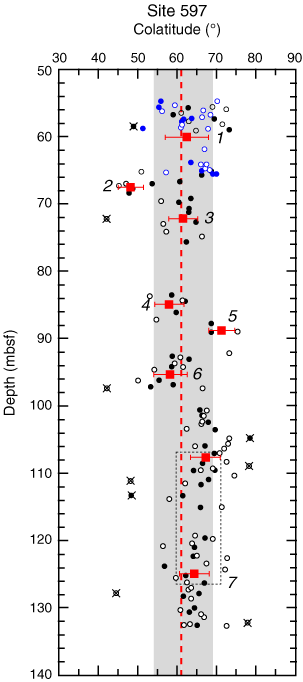

Figure F5. Colatitude data for Site 597. Open symbols = data from Nishitani (1986), solid symbols = data from this study. Blue symbols = Hole 597B, black symbols = Hole 597C. Dotted boxes = group means combined for the site-mean calculations (see text). Numbers in italics = identifiers of the five groups considered independent. Symbols with "X" = a colatitude value not used to calculate mean colatitude. Red solid squares = group mean colatitudes, horizontal bars = one standard deviation. Red dashed line = the mean colatitude, gray vertical bar = 95% confidence limits.

Figure F5. Colatitude data for Site 597. Open symbols = data from Nishitani (1986), solid symbols = data from this study. Blue symbols = Hole 597B, black symbols = Hole 597C. Dotted boxes = group means combined for the site-mean calculations (see text). Numbers in italics = identifiers of the five groups considered independent. Symbols with "X" = a colatitude value not used to calculate mean colatitude. Red solid squares = group mean colatitudes, horizontal bars = one standard deviation. Red dashed line = the mean colatitude, gray vertical bar = 95% confidence limits.
