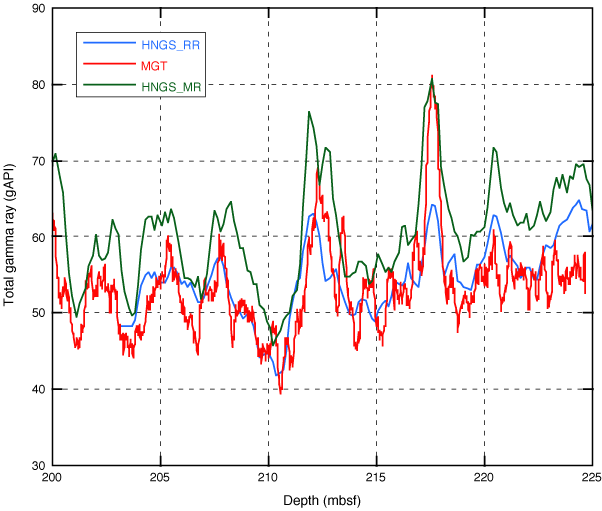

Figure F4. Expanded depth scale of the total gamma ray logs shown in Figure F3 (200–225 mbsf), plus the repeat Schlumberger gamma ray tool pass (HNGS_RR) in Hole 1179D. The correlation among these logs is very good, in particular for the Multi-Sensor Spectral Gamma Ray Tool (MGT) and repeat HNGS logs.
