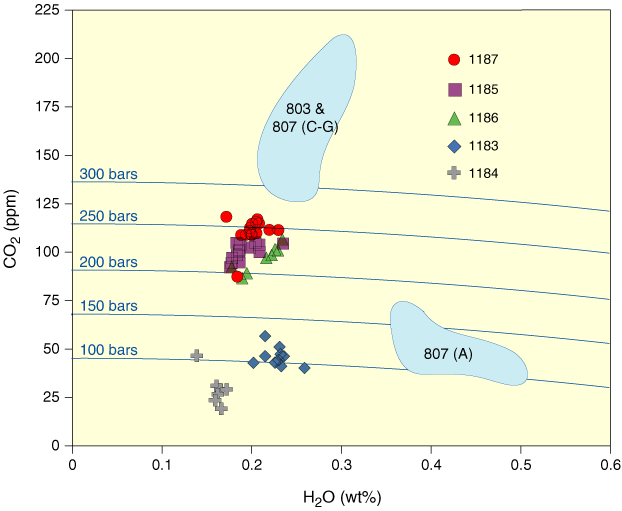

Figure F5. CO2 vs. H2O for OJP basaltic glasses (after Roberge et al., 2004). Vapor-saturation curves are shown for basaltic melts at pressures from 100 to 300 bar. Fields of data for Sites 803 and 807 are from Michael (1999).

Figure F5. CO₂ vs. H₂O for OJP basaltic glasses (after Roberge et al., 2004). Vapor-saturation curves are shown for basaltic melts at pressures from 100 to 300 bar. Fields of data for Sites 803 and 807 are from Michael (1999).
