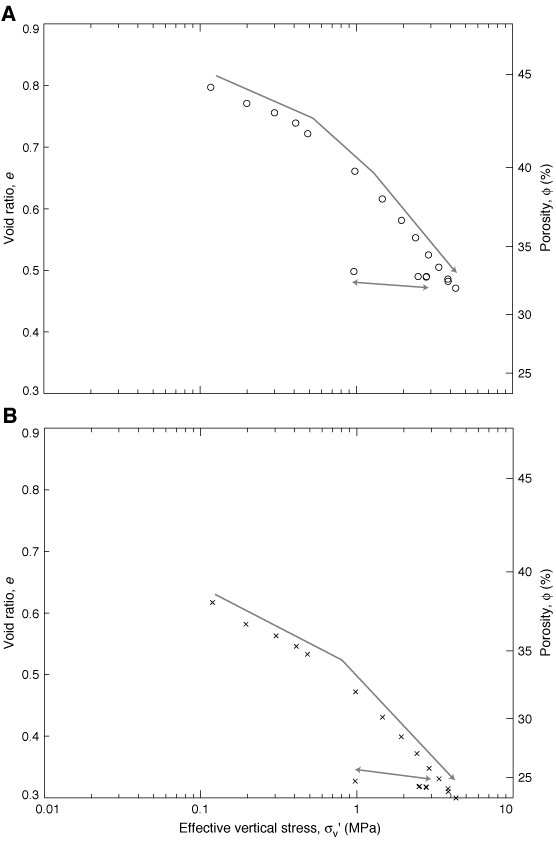

Figure F6. Deformation behavior for (A) Sample 194-1198A-13H-3, 135-137 cm, and (B) Sample 194-1198A-13H-3, 139–141 cm. Void ratio is plotted on a linear scale on the left y-axis and equivalent porosity is plotted on the right y-axis. Gray arrows illustrate loading/unloading/reloading paths. Raw data are provided in Tables T9 and T10.

Figure F6. Deformation behavior for (A) Sample 194-1198A-13H-3, 135–137 cm, and (B) Sample 194-1198A-13H-3, 139–141 cm. Void ratio is plotted on a linear scale on the left y-axis and equivalent porosity is plotted on the right y-axis. Gray arrows illustrate loading/unloading/reloading paths. Raw data are provided in Tables T9 and T10.
