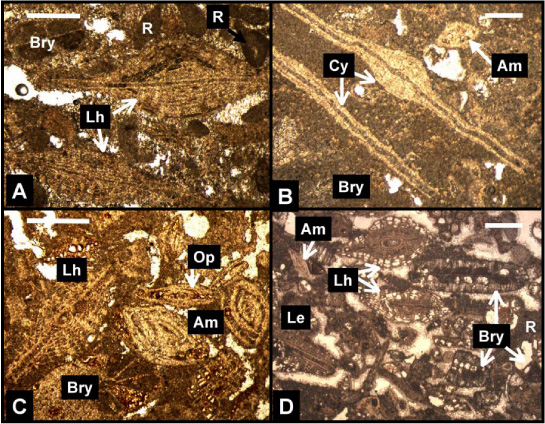

Figure F10. Middle Miocene (11.9–16.4 Ma) LBF-rich facies from Site 1193 with Amphistegina (Am), Cycloclypeus (Cy), Lepidocyclina (Eulepidina) fragments (Le), Lepidocyclina (Nephrolepidina) howchini (Lh), Operculina (Op), and bryozoan (Bry) and coralline red algal fragments (R). Scale bars = ~1 mm. A. Sample 194-1193A-40X-1, 17 cm. B. Sample 194-1193A-19X-CC, 5 cm. Very flat, delicate Cycloclypeus are indicative of deposition in the oligophotic zone (~100–150 m). C. Sample 194-1193A-16X-1, 16 cm (13.6–18.2 Ma). D. Sample 194-1193A-12X-1, 6 cm.
