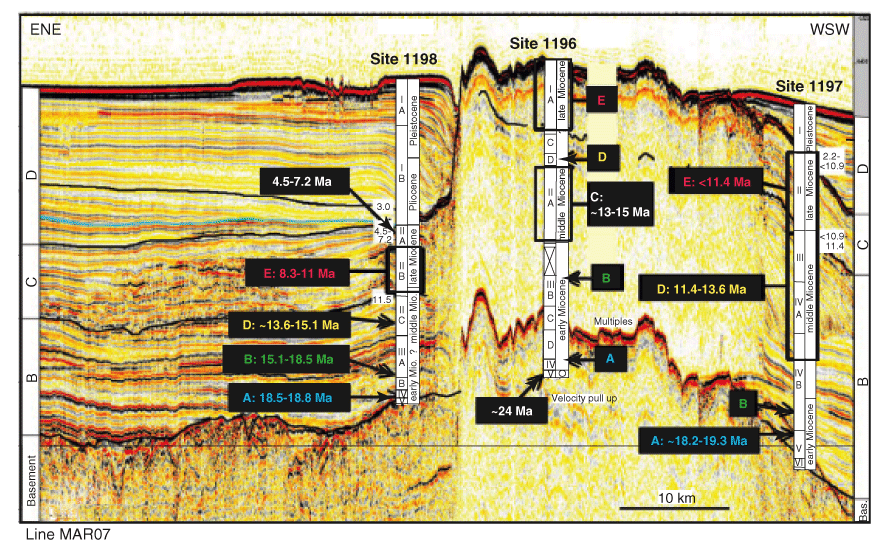

Figure F19. Correlation among Leg 194 drill sites on the southern platform and adjacent slopes of the Marion Plateau, with intervals characterized by LBF Assemblages A–E (defined in text) noted. Ages were determined shipboard, primarily using nannofossils or planktonic foraminifers (adapted from Shipboard Scientific Party, 2002).
