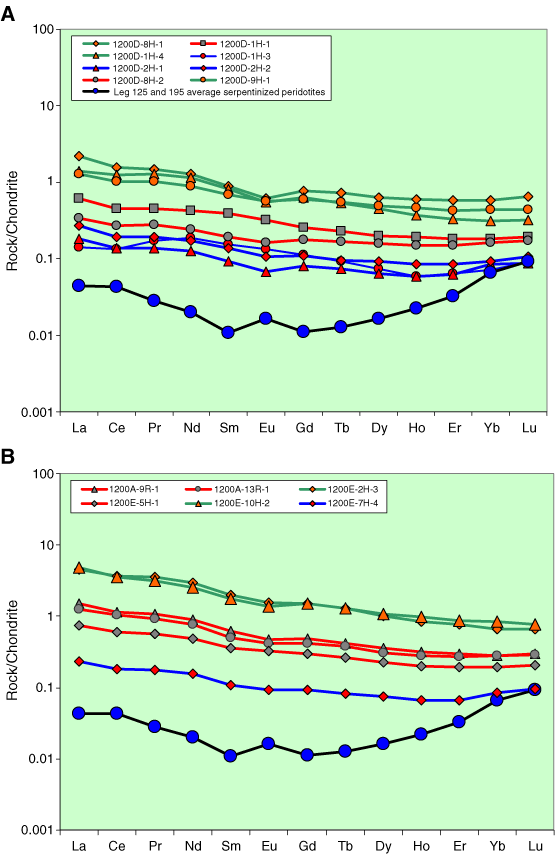

Figure F8. A. Coryell-Masuda diagram for serpentinite muds from Leg 195, Hole 1200D, normalized to chondrites (Nakamura, 1974). Note the different abundances (and patterns) between the serpentinite muds and the average serpentinized peridotites of Savov (2004). B. Coryell-Masuda diagram for serpentinite muds from Leg 195, Holes 1200A and 1200E, normalized to chondrites (Nakamura, 1974). Note the different abundances (and patterns) between the serpentinite muds and the average serpentinized peridotites of Savov (2004). Also note the REE abundances are similar to the muds from Hole 1200D (A).

Figure F8. A. Coryell-Masuda diagram for serpentinite muds from Leg 195, Hole 1200D, normalized to chondrites (Nakamura, 1974). Note the different abundances (and patterns) between the serpentinite muds and the average serpentinized peridotites of Savov (2004). B. Coryell-Masuda diagram for serpentinite muds from Leg 195, Holes 1200A and 1200E, normalized to chondrites (Nakamura, 1974). Note the different abundances (and patterns) between the serpentinite muds and the average serpentinized peridotites of Savov (2004). Also note the REE abundances are similar to the muds from Hole 1200D (A).
