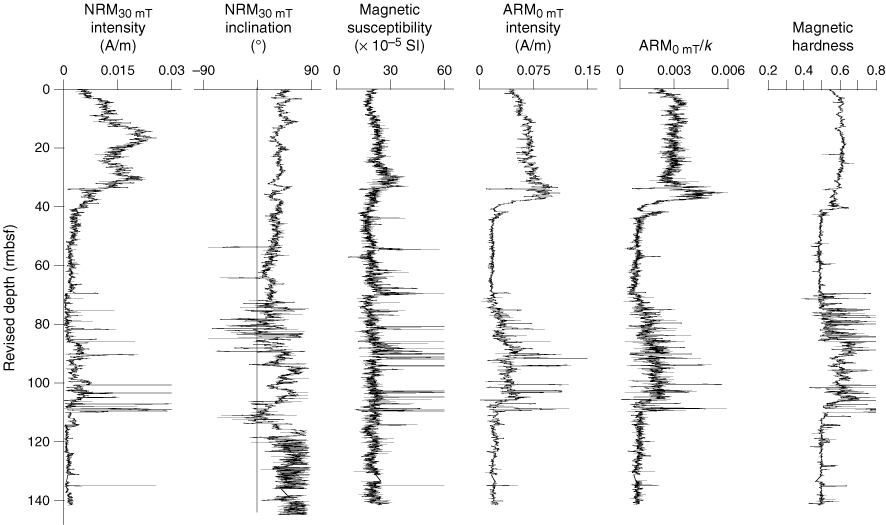

Figure F4. Downcore variations of magnetic parameters (NRM intensity and inclination, magnetic susceptibility, and ARM intensity), relative magnetic grain-size proxy (ARM/k), and magnetic hardness (ARM30 mT/ARM0 mT) determined in Hole 1202B. NRM = natural remanent magnetization, ARM = anhysteretic remanent magnetization.

Figure F4. Downcore variations of magnetic parameters (NRM intensity and inclination, magnetic susceptibility, and ARM intensity), relative magnetic grain-size proxy (ARM/k), and magnetic hardness (ARM_{30 mT}/ARM_{0 mT}) determined in Hole 1202B. NRM = natural remanent magnetization, ARM = anhysteretic remanent magnetization.
