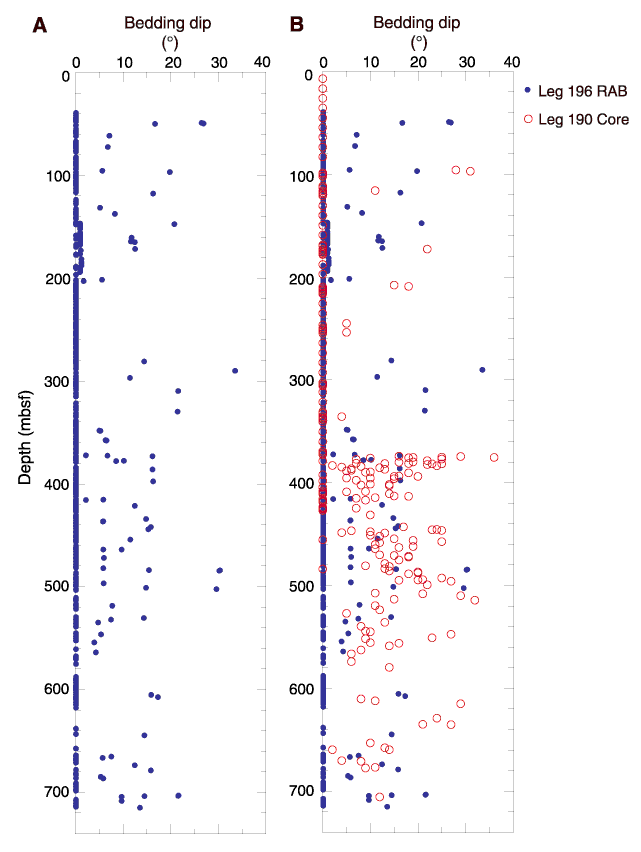

Figure F17. A. Bedding dips measured from resistivity-at-the-bit (RAB) data. Bedding dips are predominantly subhorizontal (0°-5°) with a slight increase in average dip below 370 mbsf. B. Comparison of bedding dip from Leg 190 core data (open circles) and Leg 196 logging-while-drilling RAB data (solid circles). Leg 196 apparent bedding dips are on average slightly lower, but changes in average dip are common to both data sets and any discrepancy may be a function of differences in resolution and methods.
