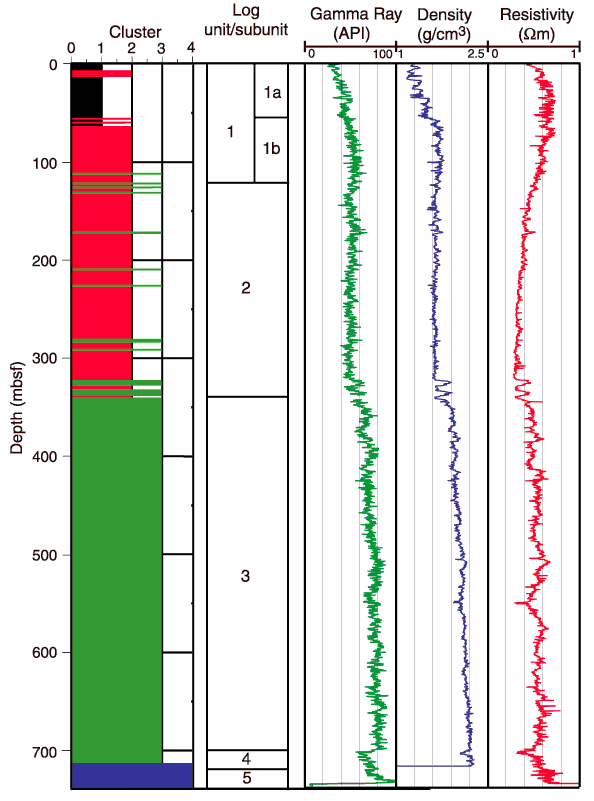

Figure F9. Definition of log units based on statistical analysis, Site 1173. Four clusters were derived from two factor logs, accounting for 76% of the total variance observed in the data. Each cluster describes a group with its specific physical properties. Boundaries between first-order log units correspond to changes in log character related primarily to lithology that are visible on the gamma ray, density, and resistivity logs. Second-order units represent subtle changes in log character.
