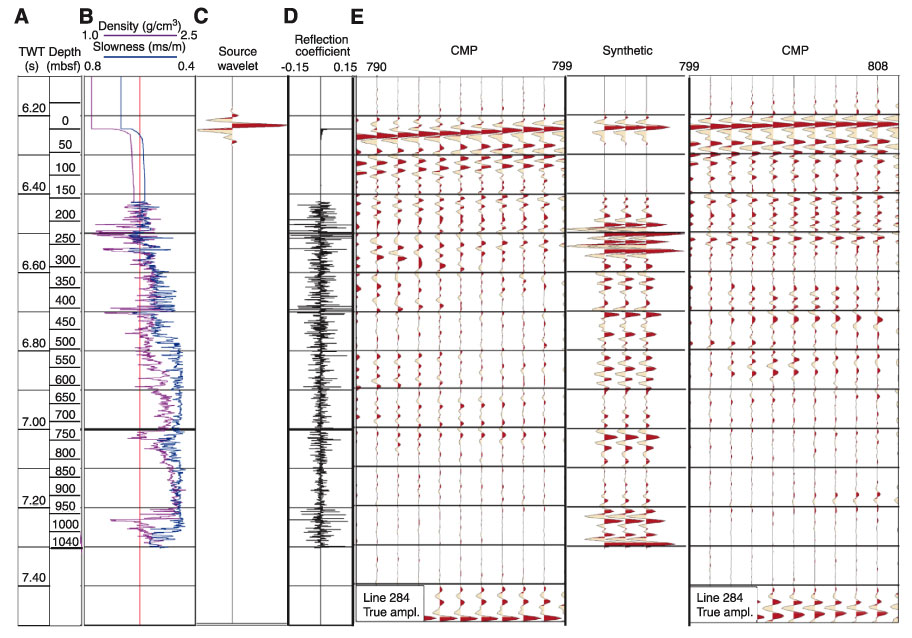

Figure F30. Summary of synthetic seismogram analyses, Site 808. A. Two-way traveltime (TWT) vs. depth relationship. B. Density and velocity curves where velocity is shown as slowness (inverse of velocity). C. Modeled source wavelet. D. Reflection coefficient. E. Common depth points (CMPs) 789-809 from Inline 284 with the synthetic seismogram displayed in the center as three identical traces. CMP spacing = 25 m, ampl. = amplitude.

Figure F30. Summary of synthetic seismogram analyses, Site 808. A. Two-way traveltime (TWT) vs. depth relationship. B. Density and velocity curves where velocity is shown as slowness (inverse of velocity). C. Modeled source wavelet. D. Reflection coefficient. E. Common depth points (CMPs) 789-809 from Inline 284 with the synthetic seismogram displayed in the center as three identical traces. CMP spacing = 25 m, ampl. = amplitude.
