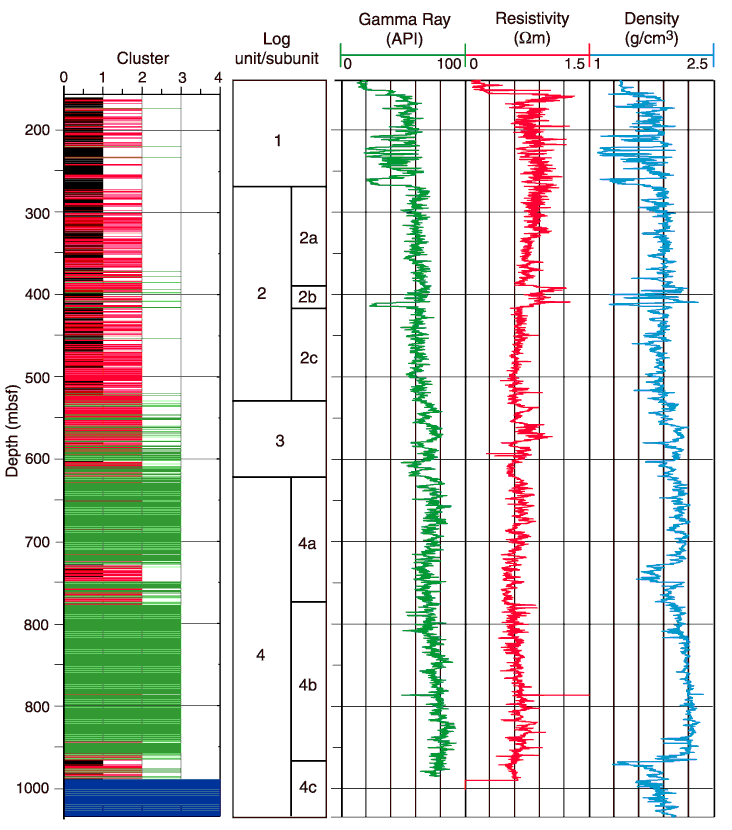

Figure F7. Definition of log units for Site 808 based on statistical analysis. Four clusters were derived, where each cluster describes a group with its specific physical properties. Boundaries between first-order log units correspond to changes in log character related primarily to lithology that are visible on the gamma ray, resistivity, and density logs. Second-order units represent subtle changes in log character.
