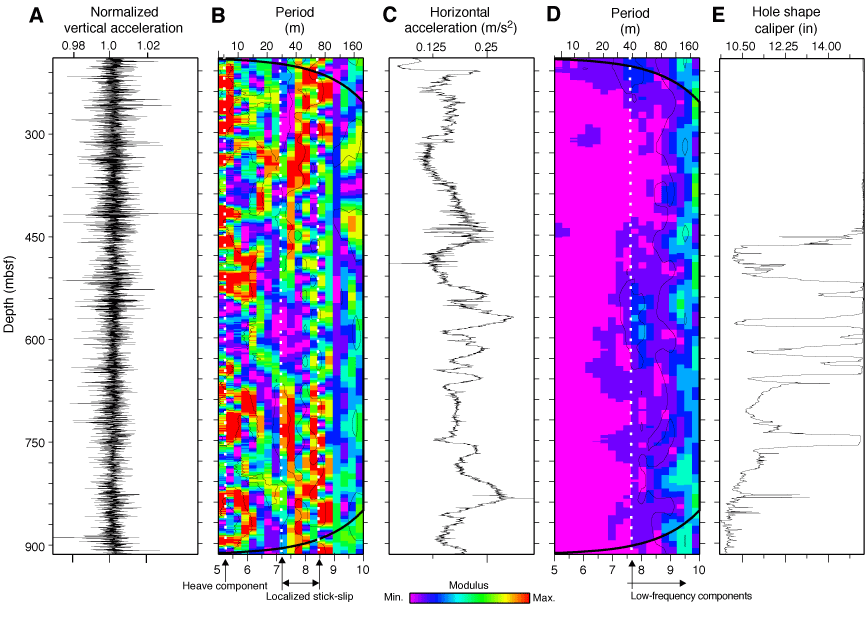

Figure F2. Wavelet analysis of the normalized vertical and horizontal acceleration of the Formation MicroScanner (FMS)-sonic tool string in Hole 1203A. A. Normalized vertical acceleration. B. Wavelet spectrum (modulus) of the normalized vertical acceleration showing incomplete heave compensation (~2 m) over the full record and localized stick-slip displacement over intervals of small (<20 m) and intermediate (~40–60 m) scale. C. Horizontal acceleration. D. Wavelet spectrum (modulus) of the horizontal acceleration showing a component of distinct low frequency within the 40- to 160-m range. E. Associated with D, hole shape expressed by the FMS tool string calipers. Hole shape exemplifies the effects of hole conditions on the tool rotation. Red = high wavelet modulus, blue = low wavelet modulus.
