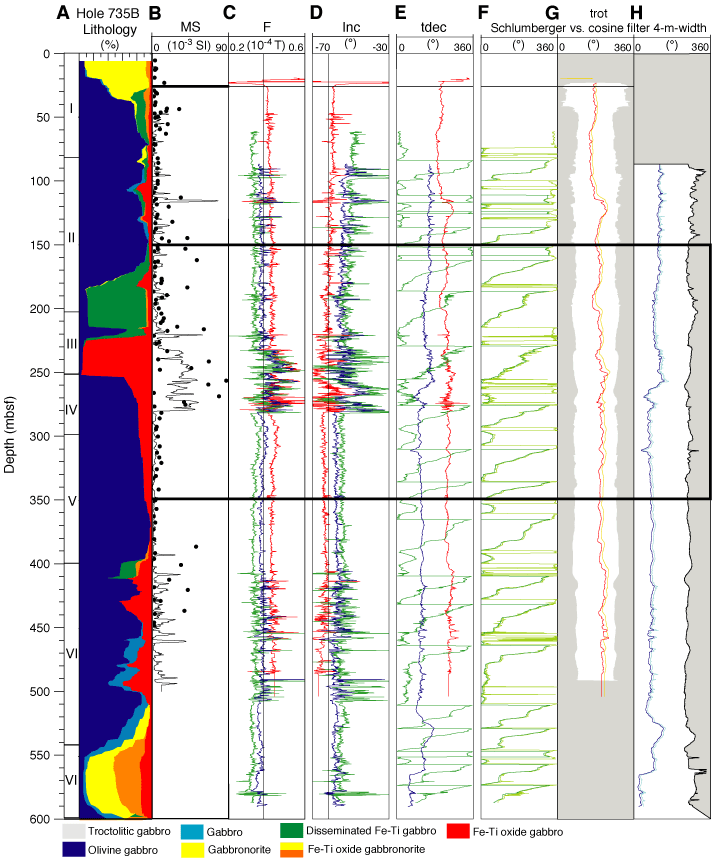

Figure F7. Hole 735B magnetic logs acquired during Legs 118 and 176. A. Lithologic units and lithostratigraphy from Dick, Natland, Miller, et al. (1999). B. Core magnetic susceptibility (MS) measured by multisensor track (0–450 mbsf; dots) and USGS susceptibility probe MS. C. Intensity (F). D. Inclination (Inc) of the total magnetic field. E. Tool declination (tdec) from the lithodensity tool string (Leg 118; red), Dual Laterolog (Leg 176; green), and FMS-sonic (Leg 176; blue). F–H. Comparison of the Schlumberger algorithm (dark color; 2.4-m Hamming filter) with the previously validated filtering algorithm (4-m-wide cosine filter, light color) is shown for the three tool strings (trot = tool rotation).

Figure F7. Hole 735B magnetic logs acquired during Legs 118 and 176. A. Lithologic units and lithostratigraphy from Dick, Natland, Miller, et al. (1999). B. Core magnetic susceptibility (MS) measured by multisensor track (0–450 mbsf; dots) and USGS susceptibility probe MS. C. Intensity (F). D. Inclination (Inc) of the total magnetic field. E. Tool declination (tdec) from the lithodensity tool string (Leg 118; red), Dual Laterolog (Leg 176; green), and FMS-sonic (Leg 176; blue). F–H. Comparison of the Schlumberger algorithm (dark color; 2.4-m Hamming filter) with the previously validated filtering algorithm (4-m-wide cosine filter, light color) is shown for the three tool strings (trot = tool rotation).
