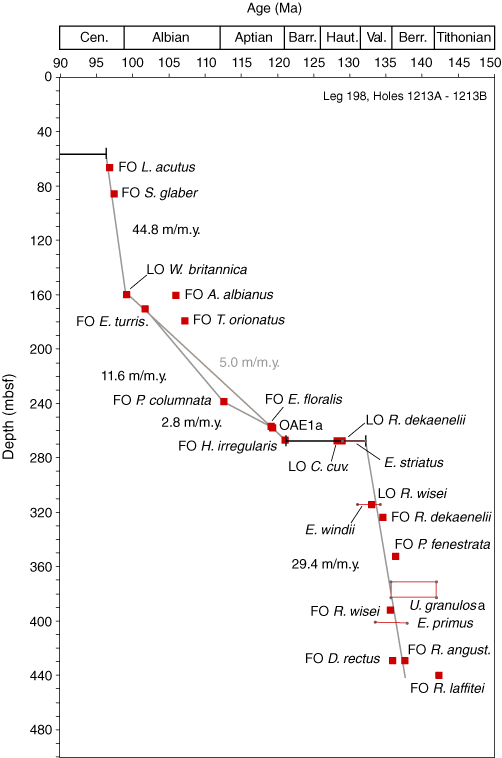

Figure F2. Age-depth plot of calcareous nannofossil datums from Site 1213. Red squares = nannofossil datums: actual depth in core (mbsf) vs. age from the Bralower, Premoli Silva, Malone, et al. (2002) time-scale. Red lines = plots of a single or few occurrences. Red square = total depth and age range for U. granulosa. OAE1a is also included in the plots. Horizontal black lines = hiatuses. FO = first occurrence, LO = last occurrence.

Figure F2. Age-depth plot of calcareous nannofossil datums from Site 1213. Red squares = nannofossil datums: actual depth in core (mbsf) vs. age from the Bralower, Premoli Silva, Malone, et al. (2002) time-scale. Red lines = plots of a single or few occurrences. Red square = total depth and age range for U. granulosa. OAE1a is also included in the plots. Horizontal black lines = hiatuses. FO = first occurrence, LO = last occurrence.
