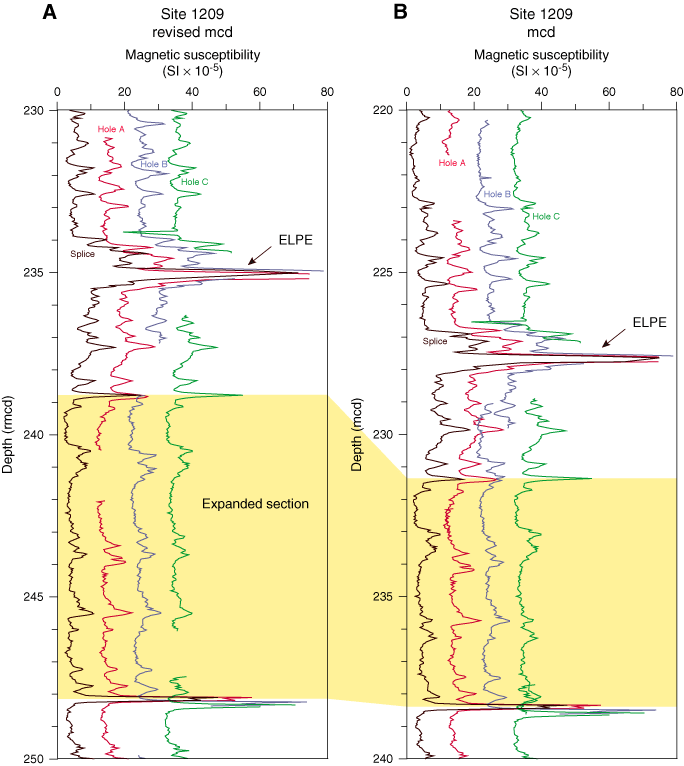

Figure F3. Site 1209 magnetic susceptibility data for (A) 230–250 rmcd and (B) 220–240 mcd. Holes 1209A, 1209B, and 1209C are offset from the Site 1209 splice by a constant (10 x 10–5, 20 x 10–5, and 30 x 10–5, respectively). The shaded areas highlight expanded sections in the rmcd splice compared to the mcd splice. This interval includes the Early Late Paleocene Biotic Event (ELPE).

Figure F3. Site 1209 magnetic susceptibility data for (A) 230–250 rmcd and (B) 220–240 mcd. Holes 1209A, 1209B, and 1209C are offset from the Site 1209 splice by a constant (10 x 10^–5, 20 x 10^–5, and 30 x 10^–5, respectively). The shaded areas highlight expanded sections in the rmcd splice compared to the mcd splice. This interval includes the Early Late Paleocene Biotic Event (ELPE).
