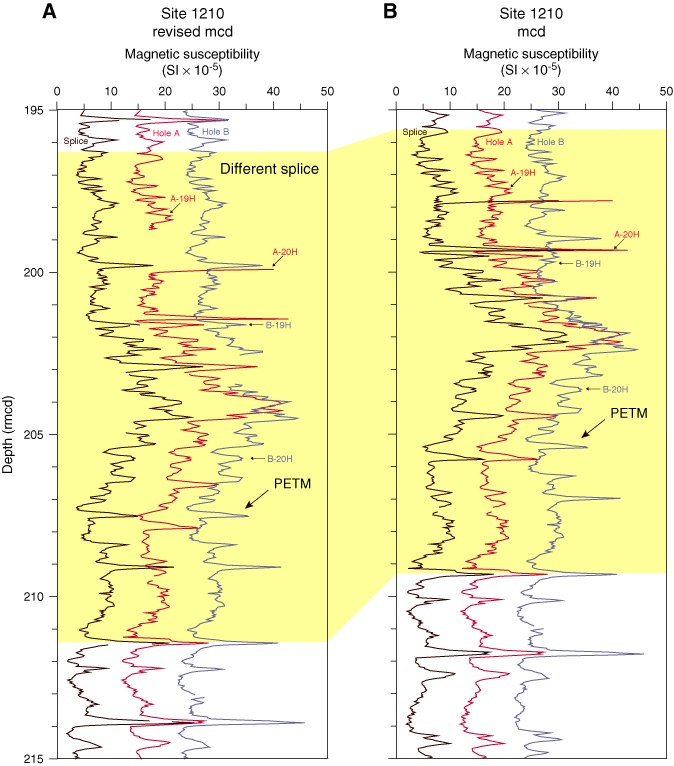

Figure F8. Site 1210 magnetic susceptibility data for 195–215 (A) revised meters composite depth and (B) meters composite depth. Holes 1210A and 1210B are offset from the Site 1210 splice by a constant (10 x 10–5 and 20 x 10–5, respectively). The shaded area highlights differences in the splice. This interval includes the Paleocene/Eocene boundary (Paleocene/Eocene Thermal Maximum [PETM]).

Figure F8. Site 1210 magnetic susceptibility data for 195–215 (A) revised meters composite depth and (B) meters composite depth. Holes 1210A and 1210B are offset from the Site 1210 splice by a constant (10 x 10^–5 and 20 x 10^–5, respectively). The shaded area highlights differences in the splice. This interval includes the Paleocene/Eocene boundary (Paleocene/Eocene Thermal Maximum [PETM]).
