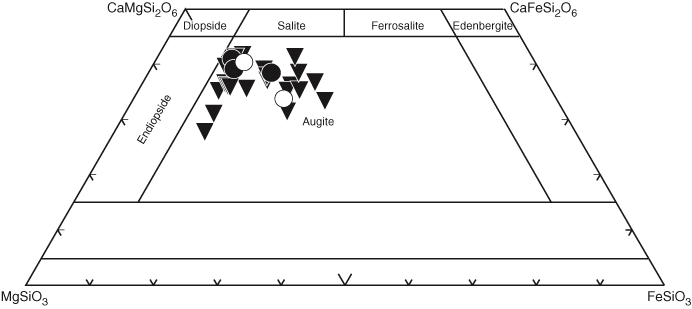

Figure F3. Clinopyroxene composition of Site 1224 ferrobasalts plotted in the conventional Wo-En-Fs classification scheme (Morimoto et al., 1988). Solid triangles = groundmass phases, open circles = phenocryst rims, solid circles = phenocryst cores.

Figure F3. Clinopyroxene composition of Site 1224 ferrobasalts plotted in the conventional Wo-En-Fs classification scheme (Morimoto et al., 1988). Solid triangles = groundmass phases, open circles = phenocryst rims, solid circles = phenocryst cores.
