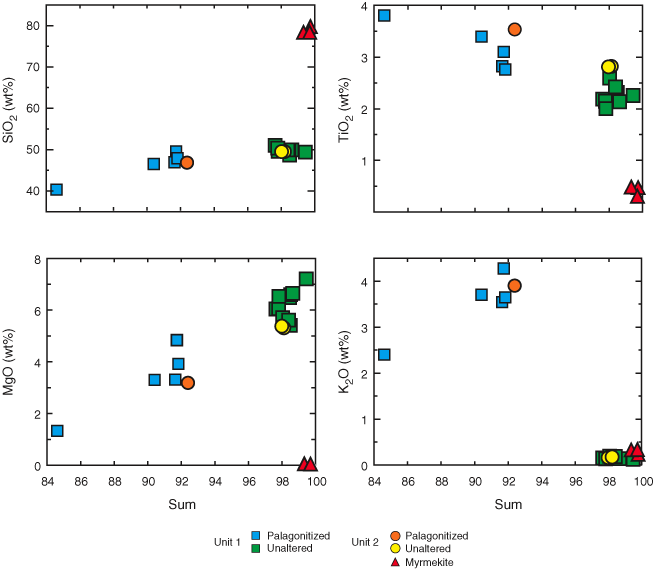

Figure F5. SiO2, TiO2, MgO, and K2O vs. sum of oxides for fresh and palagonitized volcanic glasses plus myrmekitic intergrowths found in Site 1224 ferrobasalts.

Figure F5. SiO₂, TiO₂, MgO, and K₂O vs. sum of oxides for fresh and palagonitized volcanic glasses plus myrmekitic intergrowths found in Site 1224 ferrobasalts.
