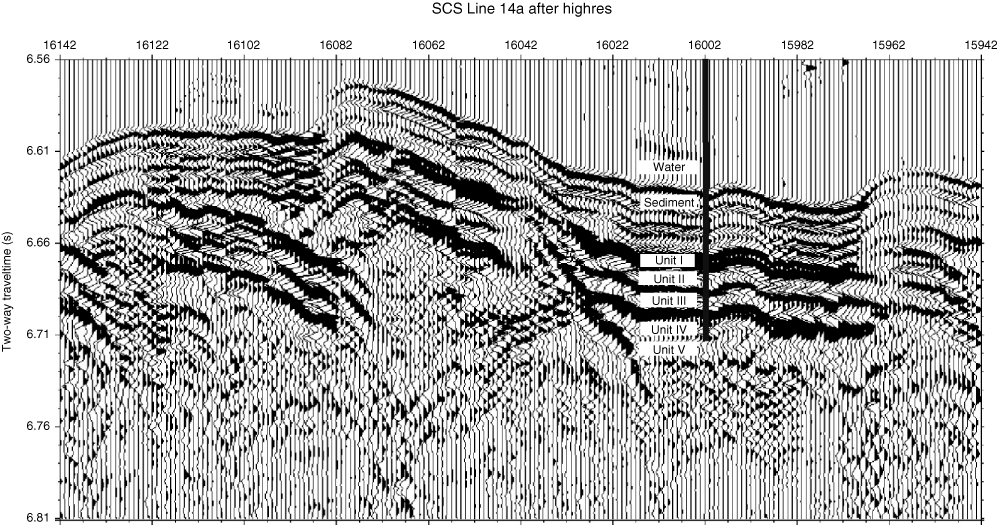

Figure F18. Seismic reflection record and its interpretation using synthetic seismograms obtained from logging data (Sun et al., this volume). Logging Unit LG-V is the deepest horizon identified on the seismic refection record. This suggests that below logging Unit LG-V major fractures and/or hydrothermal circulation may not exist. SCS = single-channel seismic.

Figure F18. Seismic reflection record and its interpretation using synthetic seismograms obtained from logging data (Sun et al., this volume). Logging Unit LG-V is the deepest horizon identified on the seismic refection record. This suggests that below logging Unit LG-V major fractures and/or hydrothermal circulation may not exist. SCS = single-channel seismic.
