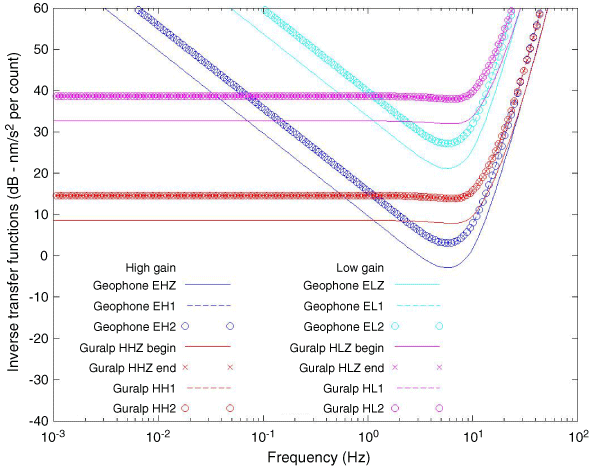

Figure F2. Inverse transfer functions for the two seismic sensors at the Hawaii-2 Observatory. These apply to data acquired at 160 sps. For each item listed, the first letter stands for geophone (E) or Gurlap (H), the second stands for high (H) or low (L) gain channels, and the third stands for vertical component (Z). Numbers in third position indicate horizontal components.

Figure F2. Inverse transfer functions for the two seismic sensors at the Hawaii-2 Observatory. These apply to data acquired at 160 sps. For each item listed, the first letter stands for geophone (E) or Guralp (H), the second stands for high (H) or low (L) gain channels, and the third stands for vertical component (Z). Numbers in third position indicate horizontal components.
