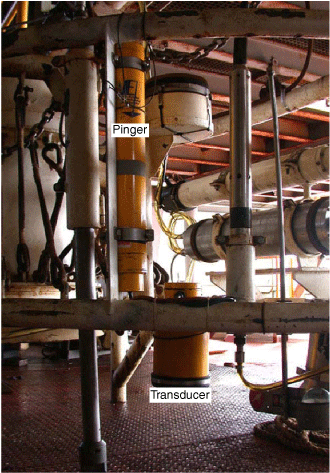

Figure F4. On the VIT frame, the 4.252-kHz transducer is the squat cylinder in the middle under the frame's lower horizontal member. The batteries and electronics are in the yellow cylinder to the upper left marked "Pinger."
